Model: WEF5727TR
Smart ENERGY STAR® Front Load Laundry Tower with UV Clean Technology & FreshFlowTM Vent System 4.5 cu. ft. Washer & 7.4 cu. ft. Electric Dryer
Send Email
Print

Product Description

This single-unit front load laundry tower features easy-to-reach controls and the FreshFlow™ Vent System with Industry-First UV Clean. Keep your clothes and washer fresh, now with the added benefit of UV light technology that reduces bacteria in the wash without requiring high temps or fading fabrics. Simplify your laundry routine with intelligent wash and dry technology that senses and makes automatic adjustments for ideal cleaning performance and to prevent clothes from overdrying.

White Radiant Silver
Color: Radiant Silver

Model: WEF5727TR
Smart ENERGY STAR® Front Load Laundry Tower with UV Clean Technology & FreshFlowTM Vent System 4.5 cu. ft. Washer & 7.4 cu. ft. Electric Dryer
Color: Radiant Silver

Product Description

This single-unit front load laundry tower features easy-to-reach controls and the FreshFlow™ Vent System with Industry-First UV Clean. Keep your clothes and washer fresh, now with the added benefit of UV light technology that reduces bacteria in the wash without requiring high temps or fading fabrics. Simplify your laundry routine with intelligent wash and dry technology that senses and makes automatic adjustments for ideal cleaning performance and to prevent clothes from overdrying.

Features

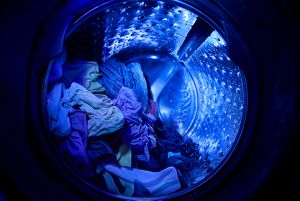

UV Clean Technology
Industry-first UV Clean Technology reduces bacteria* in the wash without requiring high temperatures or fading fabrics. When selected, a bright blue light signals the UV technology is working to tackle the bacteria in the water, giving your clothes a deep clean while keeping fabric care in mind.

*Available on select cycles. Bacteria tested include Staphylococcus aureus, Bacillus subtilis, Pseudomonas aeruginosamore

UV Clean Technology

Industry-first UV Clean Technology reduces bacteria* in the wash without requiring high temperatures or fading fabrics. When selected, a bright blue light signals the UV technology is working to tackle the bacteria in the water, giving your clothes a deep clean while keeping fabric care in mind.

*Available on select cycles. Bacteria tested include Staphylococcus aureus, Bacillus subtilis, Pseudomonas aeruginosa

x
FreshFlow™ Vent System
The FreshFlow™ Vent System, now with UV Clean Technology, keeps your clothes and machine fresh and clean. It includes the Dry Drum Cycle, FanFresh® Option, Antimicrobial protection, and industry-first UV Clean Technology.more

FreshFlow™ Vent System

The FreshFlow™ Vent System, now with UV Clean Technology, keeps your clothes and machine fresh and clean. It includes the Dry Drum Cycle, FanFresh® Option, Antimicrobial protection, and industry-first UV Clean Technology.

x
Intelligent Wash & Dry
Intelligent Wash & Dry technology uses sensors in the washer to detect load size and fabric type, automatically adjusting water level, temperature, and wash action for ideal fabric care and cleaning performance. Then sensors in the dryer detect moisture and temperature to adjust dry time to help prevent overdrying.more

Intelligent Wash & Dry

Intelligent Wash & Dry technology uses sensors in the washer to detect load size and fabric type, automatically adjusting water level, temperature, and wash action for ideal fabric care and cleaning performance. Then sensors in the dryer detect moisture and temperature to adjust dry time to help prevent overdrying.

x
Intelligent Wash & Dry
Intelligent Wash & Dry technology uses sensors in the washer to detect load size and fabric type, automatically adjusting water level, temperature, and wash action for ideal fabric care and cleaning performance. Then sensors in the dryer detect moisture and temperature to adjust dry time to help prevent overdrying.more

Intelligent Wash & Dry

Intelligent Wash & Dry technology uses sensors in the washer to detect load size and fabric type, automatically adjusting water level, temperature, and wash action for ideal fabric care and cleaning performance. Then sensors in the dryer detect moisture and temperature to adjust dry time to help prevent overdrying.

x
Handwash Cycle
Gently loosen soils in delicate items that need a little extra care with the Handwash Cycle. Choose your preferred water temperature and soil level, then gentle agitation mimics handwashing to soak away stains while helping maintain the shape and size of your fabrics.more

Handwash Cycle

Gently loosen soils in delicate items that need a little extra care with the Handwash Cycle. Choose your preferred water temperature and soil level, then gentle agitation mimics handwashing to soak away stains while helping maintain the shape and size of your fabrics.

x

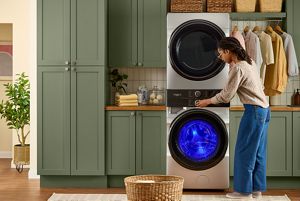

Front Load Laundry Tower
Save space and easily reach the centralized control panel with a front load laundry tower configurationmore

Front Load Laundry Tower

Save space and easily reach the centralized control panel with a front load laundry tower configuration

x
Smart Features with Whirlpool® App
Be in control and stay connected from anywhere. The Whirlpool® App lets you start, pause, track progress and receive notifications when you're away, so you can manage laundry day right from your smartphone.*

*Features subject to change. WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to Remote Enable.more

Smart Features with Whirlpool® App

Be in control and stay connected from anywhere. The Whirlpool® App lets you start, pause, track progress and receive notifications when you're away, so you can manage laundry day right from your smartphone.*

*Features subject to change. WiFi & App Required. Details & privacy info at whirlpool.com/connect. Appliance must be set to Remote Enable.

x
Finish Laundry in Under an Hour
Finish laundry in under 1 hour by pairing the 25 minute Quick Wash cycle with a 30 minute timed dry.* Experience the ultimate time-saving duo for hassle-free laundry days.

*Based on a 10 lb load on medium heatmore

Finish Laundry in Under an Hour

Finish laundry in under 1 hour by pairing the 25 minute Quick Wash cycle with a 30 minute timed dry.* Experience the ultimate time-saving duo for hassle-free laundry days.

*Based on a 10 lb load on medium heat

x
Antimicrobial Protection
Antimicrobial protection on the rubber seal helps keep your washer fresh by preventing the growth of odor-causing bacteria and mold.more

Antimicrobial Protection

Antimicrobial protection on the rubber seal helps keep your washer fresh by preventing the growth of odor-causing bacteria and mold.

x
FanFresh® Option
Keep your clothes fresh in the washer after a cycle. The FanFresh® Option uses a built-in fan and periodic tumbling to keep your just-washed clothes fresh until they're ready for the dryer, using less energy than you would re-washing your clothes.*

*Based on rewashing an 8 lb load on Normal cycle.more

FanFresh® Option

Keep your clothes fresh in the washer after a cycle. The FanFresh® Option uses a built-in fan and periodic tumbling to keep your just-washed clothes fresh until they're ready for the dryer, using less energy than you would re-washing your clothes.*

*Based on rewashing an 8 lb load on Normal cycle.

x
Dry Drum Cycle
After you take the clothes out, close your washer door and select the Dry Drum Cycle. A powerful fan reduces excess moisture from the drum, rubber gasket and door.more

Dry Drum Cycle

After you take the clothes out, close your washer door and select the Dry Drum Cycle. A powerful fan reduces excess moisture from the drum, rubber gasket and door.

x
Pump Access
Easily access the drain pump for more convenient cleaning and maintenance.more

Pump Access

Easily access the drain pump for more convenient cleaning and maintenance.

x
Wrinkle Shield™ Option
Help keep wrinkles from setting into clean, dry laundry with the Wrinkle Shield™ Option. It keeps clothes tumbling for up to 150 minutes after the cycle ends, or until you open the door.more

Wrinkle Shield™ Option

Help keep wrinkles from setting into clean, dry laundry with the Wrinkle Shield™ Option. It keeps clothes tumbling for up to 150 minutes after the cycle ends, or until you open the door.

x
ENERGY STAR® Certified
ENERGY STAR® certified models exceed government standards to help conserve natural resources and save money on your utility bills.more

ENERGY STAR® Certified

ENERGY STAR® certified models exceed government standards to help conserve natural resources and save money on your utility bills.

x
33" Closet-Depth Fit
Get a space-saving design with closet-depth fit that allows for more flexible installation in your laundry space.*

*Designed to fit a 33"" installation depth.more

33" Closet-Depth Fit

Get a space-saving design with closet-depth fit that allows for more flexible installation in your laundry space.*

*Designed to fit a 33"" installation depth.

x
An American Company for Over 100 Years
Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 yearsmore

An American Company for Over 100 Years

Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years

x
Specifications
Controls
Control Type Knob and Button
Control Location Front
Electronic Display Type Cycle Indicator Lights with Digital Time Remaining
End of Cycle Signal Yes
Feedback-Status Indicators Add Garment , Check Vent , Control Lock , Cooling Down , Damp , End , Estimated Time Remaining , Sensing , Washing , Wet
Control Type
Knob and Button
Control Location
Front
Electronic Display Type
Cycle Indicator Lights with Digital Time Remaining
End of Cycle Signal
Yes
Feedback-Status Indicators
Add Garment , Check Vent , Control Lock , Cooling Down , Damp , End , Estimated Time Remaining , Sensing , Washing , Wet
Dimensions
Capacity IEC Canada 5.2 cu. ft.
Depth 32.375 in
Depth With Door Open 90 Degree 55.625 in
Dryer Capacity 7.4 cu. ft.
Gross Weight 362 lbs
Height 76.875 in
Net Weight 352 lbs
Washer Capacity 4.5 cu. ft.
Washer Door Opening Width 23.5 in
Width 27.75 in
Console Language English
Height To Top Of Cabinet 76.875 in
Capacity IEC Canada
5.2 cu. ft.
Depth
32.375 in
Depth With Door Open 90 Degree
55.625 in
Dryer Capacity
7.4 cu. ft.
Gross Weight
362 lbs
Height
76.875 in
Net Weight
352 lbs
Washer Capacity
4.5 cu. ft.
Washer Door Opening Width
23.5 in
Width
27.75 in
Console Language
English
Height To Top Of Cabinet
76.875 in
Modifiers
Dryer Temperature Selections Air Only , Extra Low , High , Low , Medium
Number of Soil Levels 4
Number of Wash/Rinse Temperatures 5
Number of Spin Speeds 4
Rinse Temperature Cold
Temperature Selections Cold , Cool , Extra Hot , Hot , Warm
Washer Soil Selections Extra Heavy , Heavy , Light , Medium
Dryer Temperature Selections
Air Only , Extra Low , High , Low , Medium
Number of Soil Levels
4
Number of Wash/Rinse Temperatures
5
Number of Spin Speeds
4
Rinse Temperature
Cold
Temperature Selections
Cold , Cool , Extra Hot , Hot , Warm
Washer Soil Selections
Extra Heavy , Heavy , Light , Medium
Certifications
ADA Compliant No
CEE Tier Rating Tier I
IWF 3.2
IMEF 2.76
Prop 65 CA
UL Yes
Energy Star® Qualified ENERGY STAR® Qualified
ADA Compliant
No
CEE Tier Rating
Tier I
IWF
3.2
IMEF
2.76
Prop 65
CA
UL
Yes
Energy Star® Qualified
ENERGY STAR® Qualified
Smart Compatibility
Connectivity Amazon Alexa , Android , Google Assistant , iOS
Smart Appliance Yes
Works With App , Remote Access , Voice Controlled , WiFi
Connectivity
Amazon Alexa , Android , Google Assistant , iOS
Smart Appliance
Yes
Works With
App , Remote Access , Voice Controlled , WiFi
Installation Considerations
Ventless N/A
Hoses Included Yes
Ventless
N/A
Hoses Included
Yes
Cycles
Drying Cycles Selections Air Dry , Bedding , Delicates , Downloaded cycle , Heavy Duty , Jeans , Normal (Low Heat) , Quick Dry , Regular Normal Dry , Timed Dry , Whites
Number of Dryer Cycles 12
Number of Wash Cycles 12
Washer Cycle Selections Bedding , Clean Washer , Custom Cycle , Delicates , Drain & Spin , Dry Drum , Hand Wash , Heavy Duty , Normal / Regular , Quick Wash , Sanitize , Whites
Drying Cycles Selections
Air Dry , Bedding , Delicates , Downloaded cycle , Heavy Duty , Jeans , Normal (Low Heat) , Quick Dry , Regular Normal Dry , Timed Dry , Whites
Number of Dryer Cycles
12
Number of Wash Cycles
12
Washer Cycle Selections
Bedding , Clean Washer , Custom Cycle , Delicates , Drain & Spin , Dry Drum , Hand Wash , Heavy Duty , Normal / Regular , Quick Wash , Sanitize , Whites
Exterior Details
Adjustable Feet Yes
Lid/Door Swing Left
Slow Close Lid N/A
Window Yes
Adjustable Feet
Yes
Lid/Door Swing
Left
Slow Close Lid
N/A
Window
Yes
Interior Details
Automatic Load Size Sensing Technology Yes
Dispense System Detergent, Fabric Softener & Bleach
Dryer Drum Material Powder Coat
Lint Screen Location Front
Washer Drum Material Stainless Steel
Dryer Interior Light Yes
Automatic Load Size Sensing Technology
Yes
Dispense System
Detergent, Fabric Softener & Bleach
Dryer Drum Material
Powder Coat
Lint Screen Location
Front
Washer Drum Material
Stainless Steel
Dryer Interior Light
Yes
Options
Dryer Option Selections Control Lock , Cycle Signal , Damp Dry Signal , Eco Boost™ , Wrinkle Shield™
Washer Option Selections Control Lock , Delay Wash , End of Cycle Signal , Extra Rinse , Fan Fresh® , Presoak , Remote Enable , Soil Level , Spin Speed , Steam Clean , Temperature , UV Clean
Dryer Option Selections
Control Lock , Cycle Signal , Damp Dry Signal , Eco Boost™ , Wrinkle Shield™
Washer Option Selections
Control Lock , Delay Wash , End of Cycle Signal , Extra Rinse , Fan Fresh® , Presoak , Remote Enable , Soil Level , Spin Speed , Steam Clean , Temperature , UV Clean
Details
Dryer Door Reversible Yes
Dryer Lint Filter Indicator Yes
Fuel Type Electric
Sound Package No
Dryer Cycle Time Remaining Yes
Lid/Door Finish Glass
LED Color White
Lid/Door Lock Yes
Literature Language English , French
Dryer Door Reversible
Yes
Dryer Lint Filter Indicator
Yes
Fuel Type
Electric
Sound Package
No
Dryer Cycle Time Remaining
Yes
Lid/Door Finish
Glass
LED Color
White
Lid/Door Lock
Yes
Literature Language
English , French
Electrical Requirements
Power Cord Included No
Amps 30
Volts 240
Power Cord Included
No
Amps
30
Volts
240
Documents
UPC Listing
Model "WEF5727TR" UPC: 883049938844
Model "WEF5727TW" UPC: 883049938837
Model "WEF5727TR"
UPC: 883049938844
Model "WEF5727TW"
UPC: 883049938837
Install Accessories
10' Black washing machine rubber fill hoses rated 1050 PSI with 2 female connections and built-in connectors - 2 Pack

Color: Black
8212656RP
10' Black washing machine rubber fill hoses rated 1050 PSI with 2 female connections and built-in connectors - 2 Pack
Color: Black

4-way internal dryer vent kit for Left, Right, and Bottom venting, compatible with WE/GD94/95/97HEX & ME/GD6000/7000X models.

Color: Other
W10323246
4-way internal dryer vent kit for Left, Right, and Bottom venting, compatible with WE/GD94/95/97HEX & ME/GD6000/7000X models.
Color: Other

6" Electric Dryer Power Cord 4-Wire 30 Amp

Color: Black
PT600L
6" Electric Dryer Power Cord 4-Wire 30 Amp
Color: Black

5' Braided washer fill hoses with 2 female connections - 2 pack

Color: Black
8212487RC
5' Braided washer fill hoses with 2 female connections - 2 pack
Color: Black

5' Braided washer fill hoses with 2 female connections - 2 pack

Color: Black
8212487RP
5' Braided washer fill hoses with 2 female connections - 2 pack
Color: Black

6' Gray Electric Dryer Power Cord with 30-amp, 3-wire, right-angle plug, and adjustable strain relief bracket

Color: Grey
PT500L
6' Gray Electric Dryer Power Cord with 30-amp, 3-wire, right-angle plug, and adjustable strain relief bracket
Color: Grey

5' Rubber washer fill hoses rated 1000 PSI with 2 female connections and built-in O-Rings - 2 pack

Color: Blue
8212545RP
5' Rubber washer fill hoses rated 1000 PSI with 2 female connections and built-in O-Rings - 2 pack
Color: Blue

8' Black washer drain hose with molded and straight plastic fittings, U-shape rubber nozzle, and spring clamp - 1 pack

Color: Black
285666
8' Black washer drain hose with molded and straight plastic fittings, U-shape rubber nozzle, and spring clamp - 1 pack
Color: Black

6' Black Electric Dryer Power Cord with 30-amp, 4-Wire, and 4 ring terminal connectors with right-angle plug

Color: Black
8171381RC
6' Black Electric Dryer Power Cord with 30-amp, 4-Wire, and 4 ring terminal connectors with right-angle plug
Color: Black

4' Flexible Washer Drain Hose Extension Kit

Color: Black
DRNEXT4
4' Flexible Washer Drain Hose Extension Kit
Color: Black

Front Load Washer Shipping Bolt Kit Includes Two Upper Short and Two Lower Long Transport Bolts

Color: Red
W10289554A
Front Load Washer Shipping Bolt Kit Includes Two Upper Short and Two Lower Long Transport Bolts
Color: Red

5' Dryer Exhaust Duct of snap-lock metal, with 1 male fitting and 1 female fitting for standard 4" exhaust openings

Color: Other
4396009RP
5' Dryer Exhaust Duct of snap-lock metal, with 1 male fitting and 1 female fitting for standard 4" exhaust openings
Color: Other

6' Gray Electric Dryer Power Cord with 30-amp, 3-Wire, right-angle plug, and adjustable strain relief bracket

Color: Grey
8171378RC
6' Gray Electric Dryer Power Cord with 30-amp, 3-Wire, right-angle plug, and adjustable strain relief bracket
Color: Grey

6' Black braided hoses with 90 degree elbow rated 1700 PSI with two female connections - 2 Pack

Color: Black
8212638RP
6' Black braided hoses with 90 degree elbow rated 1700 PSI with two female connections - 2 Pack
Color: Black

5' Black Washer Inlet Hoses rated 1050 PSI with two female connections - 2 Pack

Color: Black
8212641RP
5' Black Washer Inlet Hoses rated 1050 PSI with two female connections - 2 Pack
Color: Black

6' Black flexible washer drain hose with elbow bracket, 1" inner diameter grey 90-degree coupler & metal clamp - 1 pack

Color: Black
W11281268
6' Black flexible washer drain hose with elbow bracket, 1" inner diameter grey 90-degree coupler & metal clamp - 1 pack
Color: Black

Maintenance Accessories
4' Silver Dryer Vent Kit with 2 flexible metal vent pieces, 2 close-quarter elbows, and clamps - 2 pack

Color: Silver
4396028
4' Silver Dryer Vent Kit with 2 flexible metal vent pieces, 2 close-quarter elbows, and clamps - 2 pack
Color: Silver

0"-18" Dryer Telescoping Vent Periscope for 2.5" clearance, with 1 male snap-lock fitting, draw-band collar & 2 clamps.

Color: Other
4396037RP
0"-18" Dryer Telescoping Vent Periscope for 2.5" clearance, with 1 male snap-lock fitting, draw-band collar & 2 clamps.
Color: Other

18"-29" Dryer Telescoping Vent Periscope for 2.5" clearance, with 1 male snap-lock fitting and 1 draw-band collar

Color: Other
4396013RB
18"-29" Dryer Telescoping Vent Periscope for 2.5" clearance, with 1 male snap-lock fitting and 1 draw-band collar
Color: Other

29"-50" Dryer Telescoping Vent Periscope for 2.5" clearance, with 1 male snap-lock fitting and 1 draw-band collar

Color: Other
4396014
29"-50" Dryer Telescoping Vent Periscope for 2.5" clearance, with 1 male snap-lock fitting and 1 draw-band collar
Color: Other

Washer Drip Tray Large Enough for Duet Models, Measuring 29-IN x 31-IN

Color: White
8212526
Washer Drip Tray Large Enough for Duet Models, Measuring 29-IN x 31-IN
Color: White

Dryer Drying Rack for Models WE/GD94, WE/GD95, WE/GD97HEX, ME/GD6000, and ME/GD7000X

Color: White
W10322470A
Dryer Drying Rack for Models WE/GD94, WE/GD95, WE/GD97HEX, ME/GD6000, and ME/GD7000X
Color: White

Washing Machine Cleaner

Color: Other
W10135699
Washing Machine Cleaner
Color: Other

5' Dryer Flexible Vent Hose with slit-cuff ends for female 4" openings

Color: Other
4396033RP
5' Dryer Flexible Vent Hose with slit-cuff ends for female 4" openings
Color: Other

4" Dryer Elbow Vent Connector for 90-degree turns within 4.5"

Color: Other
4396006RW
4" Dryer Elbow Vent Connector for 90-degree turns within 4.5"
Color: Other

Affresh® Washing Machine Cleaner Tablets – 6 Count

Color: Other
W10501250
Affresh® Washing Machine Cleaner Tablets – 6 Count
Color: Other

0"-5" Dryer Exhaust Periscope Kit for 2.5" clearance, with 1 male fitting, 1 extra-long draw band collar, and 2 clamps

Color: Other
8171587RP
0"-5" Dryer Exhaust Periscope Kit for 2.5" clearance, with 1 male fitting, 1 extra-long draw band collar, and 2 clamps
Color: Other

Touch-Up Paint with a Brush - Core Silver 0.6-oz

Color: Other
W11742404
Touch-Up Paint with a Brush - Core Silver 0.6-oz
Color: Other
