Model: KVWC736SBE

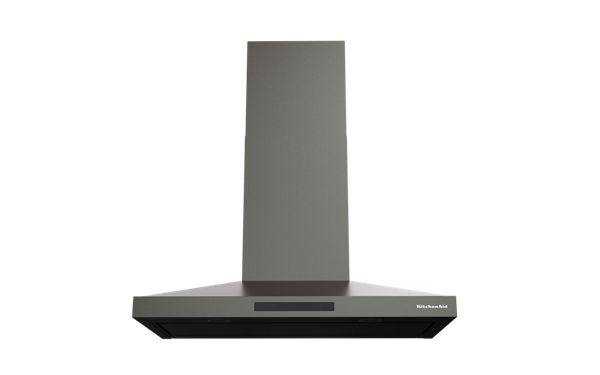

KitchenAid® 36-inch Wall-Mount, 4-Speed Canopy Hood
Send Email
Print
Product Description

Handle the heat and elevate your space with the 36-inch Wall-Mount Canopy Hood. The Four-Speed Fan provides great ventilation for every cooking moment. Power-Boost Function helps clear smoke and steam fast, activating automatically when the sensor detects high-heat cooking. Auto-Sense Setting adjusts airflow as you cook, and two LED lights keep every detail in view. Available in lush Juniper, striking Black Ore and classic Stainless Steel to blend your KitchenAid® appliances into one clean look.

Color: Black Ore

Model: KVWC736SBE
KitchenAid® 36-inch Wall-Mount, 4-Speed Canopy Hood
Color: Black Ore

Product Description

Handle the heat and elevate your space with the 36-inch Wall-Mount Canopy Hood. The Four-Speed Fan provides great ventilation for every cooking moment. Power-Boost Function helps clear smoke and steam fast, activating automatically when the sensor detects high-heat cooking. Auto-Sense Setting adjusts airflow as you cook, and two LED lights keep every detail in view. Available in lush Juniper, striking Black Ore and classic Stainless Steel to blend your KitchenAid® appliances into one clean look.

Features
Four-Speed Fan
features low, medium, high and power boost settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.more
Power Boost Function
assists high-heat cooking by activating maximum fan speed for ten minutes to help quickly clear smoke and steam. This function turns on automatically if the hood's sensor detects high-heat cooking on multiple burners and can also be activated manually.more
Auto Sense Setting
takes the guesswork out of choosing the proper ventilation setting to match your cooking by automatically adjusting the fan's speed depending on the heat being produced.more
Auto Speed Setting
takes the guesswork out of choosing the proper ventilation setting to match your cooking by automatically adjusting the fan's speed depending on the heat being produced.more
Designed to be Personalized
with a curated palette of exterior finishes. Pick from lush Juniper, warm Black Ore and classic Stainless Steel and blend your KitchenAid® appliances into one clean look.more
Removable Mesh Grease Filters
help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.more
Two LED Lights with Night Light Setting
provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.more
Perimeter Ventilation
pulls air from the edges, boosting airflow at the center to help capture more smoke, grease and odors before they escape into the kitchen.more
400 CFM Motor Class Ventilation System* *Peak performance varies based on installation. Resources available at aham.org
helps capture smoke, grease and odors from the cooking surface below for everything from simmering to high temperature cooking techniques like pan searing and stir-frying so you can experiment with confidence.more
585 CFM Motor Class Ventilation System* *Peak performance varies based on installation. Resources available at aham.org
helps capture smoke, grease and odors from the cooking surface below for everything from simmering to high temperature cooking techniques like pan searing and stir-frying so you can experiment with confidence.more
65,000 BTU Threshold
pairs with any 30-inch and 36-inch range or cooktop with a total burner output up to 65,000 BTU.more
Specifications
Certifications
ADA Compliant No
CEC Listed Yes
CUL No
Star K Certified No
Prop 65 CA
Energy Star® Qualified No
ADA Compliant
No
CEC Listed
Yes
CUL
No
Star K Certified
No
Prop 65
CA
Energy Star® Qualified
No
Details
Hood Type Wall-Mount Canopy
Material Stainless Steel
Blower Type Centrifugal
Personalized Hardware No
Hood Type
Wall-Mount Canopy
Material
Stainless Steel
Blower Type
Centrifugal
Personalized Hardware
No
Ventilation Details
Auto Function Auto On and Speed Adjust
Auto On Yes
BTU Threshold 65 K
Blower Motor Blower Motor Included
CFM Motor Class 585
Duct Direction Vertical
Duct Length 35
Duct Outlet Size 6 in
Duct Type Round
Exhaust Vent Location Top
Filters Grease Filters
Maximum Motor CFM 585
Night Light No
Task Light Type LED
Vent Fan Location Front
Vent Material Plastic
Venting Vented or Convertible to Recirculating
Damper Included Yes
Lighting Control Type Touch Button
Task Lighting Yes
Number of Task Light Settings 2
Auto Function
Auto On and Speed Adjust
Auto On
Yes
BTU Threshold
65 K
Blower Motor
Blower Motor Included
CFM Motor Class
585
Duct Direction
Vertical
Duct Length
35
Duct Outlet Size
6 in
Duct Type
Round
Exhaust Vent Location
Top
Filters
Grease Filters
Maximum Motor CFM
585
Night Light
No
Task Light Type
LED
Vent Fan Location
Front
Vent Material
Plastic
Venting
Vented or Convertible to Recirculating
Damper Included
Yes
Lighting Control Type
Touch Button
Task Lighting
Yes
Number of Task Light Settings
2
Dimensions
Canopy Height 5 in
Depth 19.6875 in
Gross Weight 55 lbs
Height 24.625 in
Net Weight 21 lbs
Width 36 in
Common Size 36 in
Maximum Height 42.625 in
Minimum Height 28.3125 in
Canopy Height
5 in
Depth
19.6875 in
Gross Weight
55 lbs
Height
24.625 in
Net Weight
21 lbs
Width
36 in
Common Size
36 in
Maximum Height
42.625 in
Minimum Height
28.3125 in
Controls
Control Location Front
Control Type Glass Touch Digital Display
Number of Vent Speeds 4
Control Location
Front
Control Type
Glass Touch Digital Display
Number of Vent Speeds
4
Electrical Requirements
Power Cord Included No
Amps 7.6
Hz 60
Volts 120
Watts 495
Power Cord Included
No
Amps
7.6
Hz
60
Volts
120
Watts
495
Documents
UPC Listing
Model "KVWC736SBE" UPC: 883049935973
Model "KVWC736SJP" UPC: 883049935980
Model "KVWC736SSS" UPC: 883049935966
Model "KVWC736SBE"
UPC: 883049935973
Model "KVWC736SJP"
UPC: 883049935980
Model "KVWC736SSS"
UPC: 883049935966
