Model: WSGS7530RZ
30-inch Smart Slide In Gas Range with Air Cooking Technology, No Preheat Air Fry, Steam/Self Clean and High Speed Preheat
Send Email
Print
Product Description

Get the ultimate in Air Cooking Technology and bring fresh options to family dinner this 30-inch, High Speed Preheat 5.0 cu ft gas range. Quickly access spills on the cooktop with our industry-first, dishwasher safe EZ-2-Lift™ Hinged Cast-Iron Grates. Get crispy and save time with No Preheat Air Fry, and go from gooey to golden and bake evenly on multiple racks with Air Baking. Plus, you can stay on top of the latest cooking features and unlock new ones over time with Smart Feature Updates.

*Griddle not included.

Color: Fingerprint Resistant Stainless Steel

Model: WSGS7530RZ
30-inch Smart Slide In Gas Range with Air Cooking Technology, No Preheat Air Fry, Steam/Self Clean and High Speed Preheat
Color: Fingerprint Resistant Stainless Steel

Product Description

Get the ultimate in Air Cooking Technology and bring fresh options to family dinner this 30-inch, High Speed Preheat 5.0 cu ft gas range. Quickly access spills on the cooktop with our industry-first, dishwasher safe EZ-2-Lift™ Hinged Cast-Iron Grates. Get crispy and save time with No Preheat Air Fry, and go from gooey to golden and bake evenly on multiple racks with Air Baking. Plus, you can stay on top of the latest cooking features and unlock new ones over time with Smart Feature Updates.

*Griddle not included.

Features
Air Cooking Technology
Save time in the kitchen with Whirlpool's convection Air Cooking Technology. Built-in Air Cooking modes use fan powered convection to rapidly and evenly heat your food, getting your cooking done fast.more
EZ-2-Lift™ Hinged Cast-Iron Grates
Get quick access to spills with our industry-first, dishwasher safe EZ-2-Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without the hassle of removing heavy grates.more
10 Cooking Modes
Take your favorite meals from fresh, fridge or freezer to fabulous with the Air Cooking Technology of No Preheat Air Fry, Air Baking, Air Roast, Air Broil and Air Reheat, or use traditional Bake, Slow Cook, Broil, Proof, and Keep Warm Cooking Modes.more
No Preheat Air Fry
Skip the wait with No Preheat Air Fy. The convection fan evenly circulates high heat around your food for consistently crisp results with less oil. Serve up crispy chicken wings and crunchy mozzarella sticks in a flash.more
Air Baking
Get even results when baking on multiple racks with Air Baking. Whether you're looking to bake twice as many cookies, or cook your dinner entrees and sides at the same time, our high-speed convection fan evenly circulates air flow and drives consistent heat throughout the oven, so you can make more in less time.more
Air Broil
Easily caramelize thick cut proteins and veggies with the high heat of Air Broil. Our high-speed convection fan circulates the intense broiler heat throughout the oven, easily browning thicker cuts of meat and produce.more
Air Roast
Prep your favorite proteins and start roasting without the wait of preheating using Air Roast. Our high-speed convection fan keeps air flow circulating through longer cook times, sealing in flavor of a golden crisp whole roasted chicken, or enjoy hearty dishes like pot roast.more
Air Reheat
Skip microwaving and add crispness to leftovers like pizza with Air Reheat. Our high-speed fan drives heat to quickly bring food up to temp.more
No Preheat Mode
Take preheating off your plate with No Preheat Mode. Simply place your food in the oven and start baking. The oven will adjust the cook time for frozen pizzas and more.more
Proof Cycle
Designed to maintain a low temperature, the Proof Cycle provides ideal conditions to properly activate yeast allowing your baked goods to rise.more
Keep Warm Setting
Use the keep warm setting in the oven to help your dishes stay warm until your family is ready to dig in.more

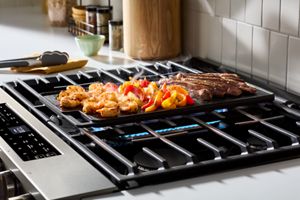

Griddle Zone
Get nearly 3x more griddle space* than an 8" skillet and more power than the leading range. Easily cook and flip a variety of foods like pancakes, meats, and veggies.
*Compared to the leading brand’s best selling model. Based on reported BTU output. Griddle not included.
more
SpeedHeat™ Burner
Use the SpeedHeat™ Burner to boil 20% faster* with high heat, so you can get dinner to the table quickly. *Compared to 9.5K burner on the same model.more
Edge-to-Edge Grates
Enjoy plenty of space to sauté, boil and simmer with Edge-to-Edge Cast-Iron Grates and the flexibility of a cooktop with a range of burner sizes and power levels.more
Cooktop Flexibility
Easily cook multiple dishes at once with a flexible cooktop that offers a range of burner sizes and power levels.more
Dishwasher Safe Air Fry Basket Included
For easy cleaning, put the included Dishwasher-Safe Air Fry Basket right in the dishwasher when it gets messy.more
Smart Range
When you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.*

*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.more
Smart Feature Updates
Stay on top of the latest cooking features and unlock new ones over time. Explore more ways to cook with Smart Feature Updates through the Whirlpool app.* Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.more
Steam Clean
Use the Steam Clean setting to quickly and easily loosen light messes inside the oven without harsh chemicals or cleaners—just add water, run the cycle and wipe away.more
Self Clean
Easily clean your oven with the adjustable Self Clean cycle that can be customized based on the amount of spills and splatters.more
Anti-Fingerprint Stainless Steel
Available in a stainless finish that’s easy to clean and resists fingerprints and smudges.more
Sabbath Mode
Sabbath mode keeps the oven in Bake mode until it can be shut off, allowing you to cook and warm food during the Sabbath. All other oven settings, including temperature displays, sounds, changes in light status and cleaning cycles will be disabled.more
Max Capacity Rack
Make the most of your oven with Max Capacity Rack. When you're cooking for a crowd, this rack has a step design that creates additional space for deeper dishes or a larger turkey.more
FIT System Limited Guarantee
Fits right, or we make it right. Upgrade your range without the construction zone. We’re so confident your new Whirlpool® Slide-In Range will fit your existing space that we’ll provide up to $100 if your cabinets need a professional adjustment*.
*Fit System Limited Guarantee: On 30" Whirlpool® slide-in ranges. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details.more
Specifications
Certifications
ADA Compliant Yes
CUL Yes
Star K Certified Star K Certified
UL Yes
Prop 65 CA
ADA Compliant
Yes
CUL
Yes
Star K Certified
Star K Certified
UL
Yes
Prop 65
CA
Oven Cavity Details
Number of Oven Racks 3
Convection Functions Bake , Broil
Oven Rack Type 2 Standard and 1 Max Capacity
Broiler Location Top Center
Oven Cleaning Type Self Clean + Steam Clean
Door Removable Yes
Number of Oven Lights 1
Convection Element Type True Convection
Oven Light Type Halogen
Oven Ignition Type Spark
Interior Color Blue Graphite
Number of Rack Guides 5
Hidden Bake Element Yes
Oven Cooking System True Convection
Broiler Element Power 1,300 W Electric Broil
Bake Element Power 16,500 BTU
Convection Element Power 925 w
Automatic Convection Conversion Temperature Adjust No
Oven Light Switch Location Oven Control
Temperature Sensor No
Number of Oven Racks
3
Convection Functions
Bake , Broil
Oven Rack Type
2 Standard and 1 Max Capacity
Broiler Location
Top Center
Oven Cleaning Type
Self Clean + Steam Clean
Door Removable
Yes
Number of Oven Lights
1
Convection Element Type
True Convection
Oven Light Type
Halogen
Oven Ignition Type
Spark
Interior Color
Blue Graphite
Number of Rack Guides
5
Hidden Bake Element
Yes
Oven Cooking System
True Convection
Broiler Element Power
1,300 W Electric Broil
Bake Element Power
16,500 BTU
Convection Element Power
925 w
Automatic Convection Conversion Temperature Adjust
No
Oven Light Switch Location
Oven Control
Temperature Sensor
No
Details
Cooktop Configuration All Burners
Fuel Type Gas
LP Convertible Yes - Kit Included
Natural Gas Convertible Yes
Oven Automatic Shut-Off Yes
Oven Configuration Single Oven
Power On Indicator Light Yes
Power Outage Compatible Yes
Range Configuration Slide-In
Range Type Slide-in
Air Fry Yes
Oven Selections Air Baking , Air Reheat , Air Roast , Audible Signal , Bake , Broil , Cancel/Off , Clock , Control Lock , Convect Modes , Cook Time Indicator , Delay Start , Frozen Bake , Keep Warm/Warm Hold , Language Conversion , No Preheat - Air Fry , No Preheat - Frozen Lasagna , No P
Temperature Probe No
Cooktop Configuration
All Burners
Fuel Type
Gas
LP Convertible
Yes - Kit Included
Natural Gas Convertible
Yes
Oven Automatic Shut-Off
Yes
Oven Configuration
Single Oven
Power On Indicator Light
Yes
Power Outage Compatible
Yes
Range Configuration
Slide-In
Range Type
Slide-in
Air Fry
Yes
Oven Selections
Air Baking , Air Reheat , Air Roast , Audible Signal , Bake , Broil , Cancel/Off , Clock , Control Lock , Convect Modes , Cook Time Indicator , Delay Start , Frozen Bake , Keep Warm/Warm Hold , Language Conversion , No Preheat - Air Fry , No Preheat - Frozen Lasagna , No P
Temperature Probe
No
Element/Burner Details
Center Front Element-Burner Power 12000 BTU
Center Front Element-Burner Type Oval Burner
Cooktop Element Style Sealed Burners
Left Front Element-Burner Power 18,000 BTU
Left Front Element-Burner Type Power™ Burner
Left Rear Element-Burner Power 10,000 BTU
Left Rear Element-Burner Type Standard
Number of Cooking Element-Burners 5
Right Front Element-Burner Power 18,000 BTU
Right Front Element-Burner Type Power™ Burner
Right Rear Element-Burner Power 5,000 BTU
Right Rear Element-Burner Type Simmer
Number of Grates 2
Center Front Element-Burner Power
12000 BTU
Center Front Element-Burner Type
Oval Burner
Cooktop Element Style
Sealed Burners
Left Front Element-Burner Power
18,000 BTU
Left Front Element-Burner Type
Power™ Burner
Left Rear Element-Burner Power
10,000 BTU
Left Rear Element-Burner Type
Standard
Number of Cooking Element-Burners
5
Right Front Element-Burner Power
18,000 BTU
Right Front Element-Burner Type
Power™ Burner
Right Rear Element-Burner Power
5,000 BTU
Right Rear Element-Burner Type
Simmer
Number of Grates
2
Exterior Details
Door Type Glass
Oven Control Knob Type N/A
Oven Control Location Front
Oven Control Type Tap Touch
Oven Window Size Large
Door Type
Glass
Oven Control Knob Type
N/A
Oven Control Location
Front
Oven Control Type
Tap Touch
Oven Window Size
Large
Grate Details
Grate Details Cast Iron Grates , Continuous with Hinge , Dishwasher Safe , Matte Finish
Grate Details
Cast Iron Grates , Continuous with Hinge , Dishwasher Safe , Matte Finish
Dimensions
Adjustable Height Yes
Cutout Depth 24 in
Cutout Height 36 in
Cutout Width 30 in
Depth 29.18 in
Depth Closed Excluding Handles 26.58 in
Depth Closed Including Handles 29.18 in
Depth Excluding Doors 25.45 in
Depth With Door Open 90 Degree 47.72 in
Gross Weight 196 lbs
Height 38.17 in
Net Weight 180 lbs
Oven Interior Height 18.625 in
Oven Interior Depth 19 in
Oven Interior Width 24.25 in
Width 29.87 in
Capacity 5 cu. ft.
Maximum Height 38.17 in
Minimum Height 36.67 in
Adjustable Height
Yes
Cutout Depth
24 in
Cutout Height
36 in
Cutout Width
30 in
Depth
29.18 in
Depth Closed Excluding Handles
26.58 in
Depth Closed Including Handles
29.18 in
Depth Excluding Doors
25.45 in
Depth With Door Open 90 Degree
47.72 in
Gross Weight
196 lbs
Height
38.17 in
Net Weight
180 lbs
Oven Interior Height
18.625 in
Oven Interior Depth
19 in
Oven Interior Width
24.25 in
Width
29.87 in
Capacity
5 cu. ft.
Maximum Height
38.17 in
Minimum Height
36.67 in
Smart Compatibility
Connectivity Amazon Alexa , Android , Google Assistant , Nest , iOS
Smart Appliance Yes
Works With App , Bluetooth , Remote Access , Voice Controlled , WiFi
Connectivity
Amazon Alexa , Android , Google Assistant , Nest , iOS
Smart Appliance
Yes
Works With
App , Bluetooth , Remote Access , Voice Controlled , WiFi
Controls
Display Color White
Electronic Display Type LED
Display Color
White
Electronic Display Type
LED
Dimensions
Gross Weight 196.000 lbs
Gross Weight
196.000 lbs
Features
Range Features ADA Compliant , Air Fry
Range Features
ADA Compliant , Air Fry
Cooktop Details
Auto Re-ignition No
Cooktop Control Location Front
Cooktop Control Knob Type Weighted-Plastic
Cooktop Control Type Knobs
Cooktop Surface Material Porcelain Coated Steel
Griddle Included No
Heating Element On Indicator Light No
Hot Surface Indicator Light No
Ignition Type Direct Spark Ignition
Auto Re-ignition
No
Cooktop Control Location
Front
Cooktop Control Knob Type
Weighted-Plastic
Cooktop Control Type
Knobs
Cooktop Surface Material
Porcelain Coated Steel
Griddle Included
No
Heating Element On Indicator Light
No
Hot Surface Indicator Light
No
Ignition Type
Direct Spark Ignition
Electrical Requirements
Power Cord Included Yes
Amps 15
Power Cord Included
Yes
Amps
15
Documents
UPC Listing
Model "WSGS7530RV" UPC: 883049682976
Model "WSGS7530RZ" UPC: 883049682969
Model "WSGS7530RV"
UPC: 883049682976
Model "WSGS7530RZ"
UPC: 883049682969
