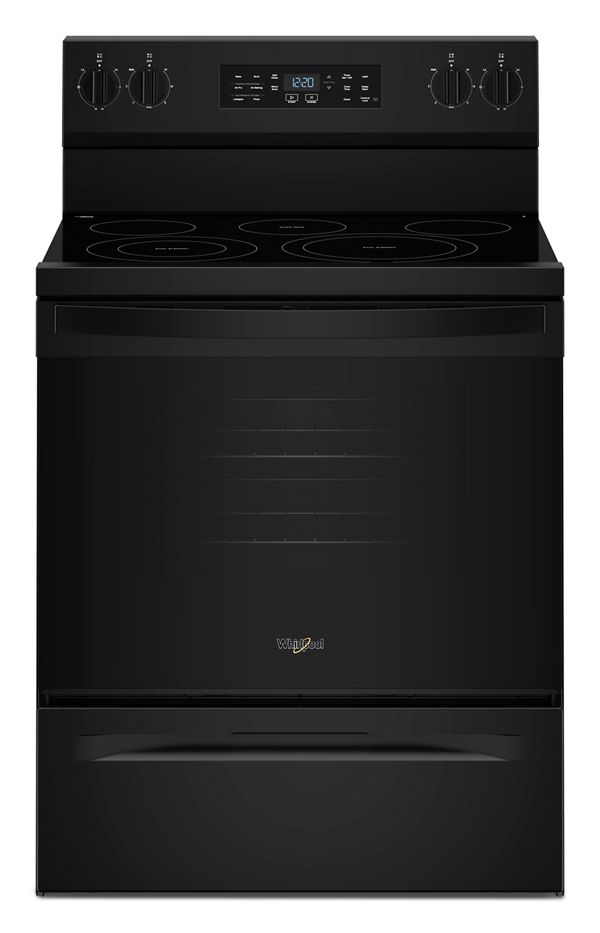

Model: WFES5730SB
30-inch Electric Range with Air Cooking Technology
Send Email
Print

Product Description

Experience the difference of Air Cooking Technology with this Whirlpool 30 inch electric range. Get crispy with our most advanced No Preheat Air Fry mode, and even results on every rack with Air Baking. Clean with just water, not harsh cleaners, with WipeClean™ coating, the easiest to clean electric cooktop coating,* and tackle your to-do list with features built for multitasking and managing your busy day.
*When compared with uncoated cooktop with same heating technology and similar wattages.

Fingerprint Resistant Stainless Steel White Black Stainless Black
Color: Black

Model: WFES5730SB
30-inch Electric Range with Air Cooking Technology
Color: Black

Product Description

Experience the difference of Air Cooking Technology with this Whirlpool 30 inch electric range. Get crispy with our most advanced No Preheat Air Fry mode, and even results on every rack with Air Baking. Clean with just water, not harsh cleaners, with WipeClean™ coating, the easiest to clean electric cooktop coating,* and tackle your to-do list with features built for multitasking and managing your busy day.
*When compared with uncoated cooktop with same heating technology and similar wattages.

Features
Air Cooking Technology
Save time in the kitchen with Whirlpool's convection Air Cooking Technology. Built-in Air Cooking modes use fan powered convection to rapidly and evenly heat your food, getting your cooking done fast.more

Air Cooking Technology

Save time in the kitchen with Whirlpool's convection Air Cooking Technology. Built-in Air Cooking modes use fan powered convection to rapidly and evenly heat your food, getting your cooking done fast.

x
No Preheat Air Fry
Skip the wait with No Preheat Air Fy. The convection fan evenly circulates high heat around your food for consistently crisp results with less oil. Serve up crispy chicken wings and crunchy mozzarella sticks in a flash.more

No Preheat Air Fry

Skip the wait with No Preheat Air Fy. The convection fan evenly circulates high heat around your food for consistently crisp results with less oil. Serve up crispy chicken wings and crunchy mozzarella sticks in a flash.

x
Air Baking
Get even results when baking on multiple racks with Air Baking. Whether you're looking to bake twice as many cookies, or cook your dinner entrees and sides at the same time, our high-speed convection fan evenly circulates air flow and drives consistent heat throughout the oven, so you can make more in less time.more

Air Baking

Get even results when baking on multiple racks with Air Baking. Whether you're looking to bake twice as many cookies, or cook your dinner entrees and sides at the same time, our high-speed convection fan evenly circulates air flow and drives consistent heat throughout the oven, so you can make more in less time.

x
5 Cooking Modes
Take your favorite meals from fresh, fridge or freezer to fabulous with the Air Cooking Technology of No Preheat Air Fry and Air Baking or use traditional settings like Bake, Broil, and No Preheat Mode.more

5 Cooking Modes

Take your favorite meals from fresh, fridge or freezer to fabulous with the Air Cooking Technology of No Preheat Air Fry and Air Baking or use traditional settings like Bake, Broil, and No Preheat Mode.

x
WipeClean™ Coating
WipeClean™ Coating offers the ultimate easy-clean solution for electric cooktops*. Water alone removes baked-on food and spills; no harsh cleaners required. Simply wet, wait, and wipe with a non-scratch sponge.

*When compared to cooktops with the same heating technology and similar wattages.more

WipeClean™ Coating

WipeClean™ Coating offers the ultimate easy-clean solution for electric cooktops*. Water alone removes baked-on food and spills; no harsh cleaners required. Simply wet, wait, and wipe with a non-scratch sponge.

*When compared to cooktops with the same heating technology and similar wattages.

x
Edge-to-Edge Glass Cooktop
Upgrade your kitchen with the streamlined design of the Edge-to-Edge Glass Cooktop. Creating an easy transition to your countertop and allowing you to move pots and pans easily from your counter to the cooking surface.more

Edge-to-Edge Glass Cooktop

Upgrade your kitchen with the streamlined design of the Edge-to-Edge Glass Cooktop. Creating an easy transition to your countertop and allowing you to move pots and pans easily from your counter to the cooking surface.

x
2 FlexHeat™ Dual Radiant Elements
Customize your element size for large or small cookware and boil 40% faster.* Both elements offer multiple sizes with 6", 9" and12" rings. *When comparing to the standard 6" element on the same unit.more

2 FlexHeat™ Dual Radiant Elements

Customize your element size for large or small cookware and boil 40% faster.* Both elements offer multiple sizes with 6", 9" and12" rings. *When comparing to the standard 6" element on the same unit.

x
No Preheat Mode
Take preheating off your plate and cook up frozen faves with No Preheat Mode. Simply press a few buttons and let your oven calculate the proper cooking time.more

No Preheat Mode

Take preheating off your plate and cook up frozen faves with No Preheat Mode. Simply press a few buttons and let your oven calculate the proper cooking time.

x
Broil
Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.more

Broil

Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.

x
Keep Warm Setting
Use the Keep Warm setting in the oven to help your dishes stay warm until your family is ready to dig in.more

Keep Warm Setting

Use the Keep Warm setting in the oven to help your dishes stay warm until your family is ready to dig in.

x
Warm Zone
Use the designated Warm Zone to keep your food warm on the cooktop as you prep the rest of your meal.more

Warm Zone

Use the designated Warm Zone to keep your food warm on the cooktop as you prep the rest of your meal.

x
Cooktop Flexibility
Easily cook multiple dishes at once with a Flexible Cooktop that offers a range of element sizes and power levels.more

Cooktop Flexibility

Easily cook multiple dishes at once with a Flexible Cooktop that offers a range of element sizes and power levels.

x
Large Capacity Oven
Cook for a crowd and fit large dishes, like a full-sized turkey, into the spacious Large Capacity 5.3 cu. ft. oven.more

Large Capacity Oven

Cook for a crowd and fit large dishes, like a full-sized turkey, into the spacious Large Capacity 5.3 cu. ft. oven.

x
Self Clean
Easily clean your oven with the adjustable Self Clean cycle that can be customized based on the amount of spills and splatters.more

Self Clean

Easily clean your oven with the adjustable Self Clean cycle that can be customized based on the amount of spills and splatters.

x
Storage Drawer
A Storage Drawer in the bottom of your range allows easy access to the items you use most and opens up space elsewhere.more

Storage Drawer

A Storage Drawer in the bottom of your range allows easy access to the items you use most and opens up space elsewhere.

x
Specifications
Oven Cavity Details
Number of Oven Racks 2
Convection Functions Air Baking , Bake Broil , No Preheat Air Fry , No Preheat Frozen Bake Lasagna , No Preheat Frozen Bake Pizza , Warm Zone , Keep Warm , No Preheat Air Fry , No Preheat Frozen Bake Lasagna , No Preheat Frozen Bake Pizza , Slow Cook , Warm Zone
Oven Rack Type 2 Standard
Broiler Location Top Center
Oven Cleaning Type Self-Cleaning
Door Removable Yes
Number of Oven Lights 1
Convection Element Type Fan
Oven Light Type Halogen
Interior Color Blue Graphite
Number of Rack Guides 5
Hidden Bake Element Hidden
Oven Cooking System Convection
Broiler Element Power 3,400 W
Bake Element Power 2,400 W
Oven Rack Guide Type Embossed
Automatic Convection Conversion Temperature Adjust No
Oven Light Switch Location Oven Control
Oven Rack Front Material Metal
Temperature Probe No
Temperature Sensor Yes
Number of Oven Racks
2
Convection Functions
Air Baking , Bake Broil , No Preheat Air Fry , No Preheat Frozen Bake Lasagna , No Preheat Frozen Bake Pizza , Warm Zone , Keep Warm , No Preheat Air Fry , No Preheat Frozen Bake Lasagna , No Preheat Frozen Bake Pizza , Slow Cook , Warm Zone
Oven Rack Type
2 Standard
Broiler Location
Top Center
Oven Cleaning Type
Self-Cleaning
Door Removable
Yes
Number of Oven Lights
1
Convection Element Type
Fan
Oven Light Type
Halogen
Interior Color
Blue Graphite
Number of Rack Guides
5
Hidden Bake Element
Hidden
Oven Cooking System
Convection
Broiler Element Power
3,400 W
Bake Element Power
2,400 W
Oven Rack Guide Type
Embossed
Automatic Convection Conversion Temperature Adjust
No
Oven Light Switch Location
Oven Control
Oven Rack Front Material
Metal
Temperature Probe
No
Temperature Sensor
Yes
Certifications
ADA Compliant No
CUL No
Star K Certified Star K Certified
UL Yes
Prop 65 CA
Energy Star® Qualified No
ADA Compliant
No
CUL
No
Star K Certified
Star K Certified
UL
Yes
Prop 65
CA
Energy Star® Qualified
No
Element/Burner Details
Center Rear Element-Burner Size 6in.
Center Rear Element-Burner Type Warming
Center Rear Element-Burner Power 100W
Cooktop Element Style Radiant
Left Front Element-Burner Power 3000W
Left Front Element-Burner Size 9in./6in.
Left Front Element-Burner Type Dual
Left Rear Element-Burner Power 1200W
Left Rear Element-Burner Size 6in.
Left Rear Element-Burner Type Single
Number of Cooking Element-Burners 5
Right Front Element-Burner Power 3000W
Right Front Element-Burner Size 12in./9in.
Right Rear Element-Burner Size 6in.
Right Front Element-Burner Type Dual
Right Rear Element-Burner Power 1200W
Right Rear Element-Burner Type Single
Center Rear Element-Burner Size
6in.
Center Rear Element-Burner Type
Warming
Center Rear Element-Burner Power
100W
Cooktop Element Style
Radiant
Left Front Element-Burner Power
3000W
Left Front Element-Burner Size
9in./6in.
Left Front Element-Burner Type
Dual
Left Rear Element-Burner Power
1200W
Left Rear Element-Burner Size
6in.
Left Rear Element-Burner Type
Single
Number of Cooking Element-Burners
5
Right Front Element-Burner Power
3000W
Right Front Element-Burner Size
12in./9in.
Right Rear Element-Burner Size
6in.
Right Front Element-Burner Type
Dual
Right Rear Element-Burner Power
1200W
Right Rear Element-Burner Type
Single
Details
Cooktop Configuration All Burners
Delay Clean No
Fuel Type Electric
Installation Configuration Freestanding
Oven Automatic Shut-Off Yes
Oven Configuration Single Oven
Power On Indicator Light Yes
Power Outage Compatible Yes
Range Configuration Freestanding
Range Type Freestanding
Air Fry Yes
Oven Selections Audible Signal , Bake , Broil , Cancel/Off , Clock , Control Lock , Convect Modes , Cook Time Indicator , Delay Start , Keep Warm/Warm Hold , Language Conversion , No Preheat - Frozen , Rapid Preheat , Reheat , Sabbath Mode , Start Time , Stop Time , Timer
Literature Language English , French , Spanish
Export Packaging No
Cooktop Configuration
All Burners
Delay Clean
No
Fuel Type
Electric
Installation Configuration
Freestanding
Oven Automatic Shut-Off
Yes
Oven Configuration
Single Oven
Power On Indicator Light
Yes
Power Outage Compatible
Yes
Range Configuration
Freestanding
Range Type
Freestanding
Air Fry
Yes
Oven Selections
Audible Signal , Bake , Broil , Cancel/Off , Clock , Control Lock , Convect Modes , Cook Time Indicator , Delay Start , Keep Warm/Warm Hold , Language Conversion , No Preheat - Frozen , Rapid Preheat , Reheat , Sabbath Mode , Start Time , Stop Time , Timer
Literature Language
English , French , Spanish
Export Packaging
No
Exterior Details
Door Type Glass
Oven Control Knob Type N/A
Oven Control Location Backguard
Oven Control Type Tap Touch
Oven Window Size Extra Large
Door Lock Yes
Door Type
Glass
Oven Control Knob Type
N/A
Oven Control Location
Backguard
Oven Control Type
Tap Touch
Oven Window Size
Extra Large
Door Lock
Yes
Dimensions
Adjustable Height Yes
Cutout Depth 24 in
Cutout Height 36 in
Cutout Width 30 in
Depth 24.5 in
Depth Closed Excluding Handles 26.1 in
Depth Closed Including Handles 28.2 in
Depth Excluding Doors 24.5 in
Depth With Door Open 90 Degree 46.8 in
Gross Weight 185 lbs
Height 46.7 in
Net Weight 169 lbs
Oven Interior Height 19.2 in
Oven Interior Depth 19.7 in
Oven Interior Width 24.2 in
Width 29.9 in
Capacity 5.3 cu. ft.
Common Size 30 in
Maximum Height 52.2 in
Minimum Height 46.7 in
Console Language English
Adjustable Height
Yes
Cutout Depth
24 in
Cutout Height
36 in
Cutout Width
30 in
Depth
24.5 in
Depth Closed Excluding Handles
26.1 in
Depth Closed Including Handles
28.2 in
Depth Excluding Doors
24.5 in
Depth With Door Open 90 Degree
46.8 in
Gross Weight
185 lbs
Height
46.7 in
Net Weight
169 lbs
Oven Interior Height
19.2 in
Oven Interior Depth
19.7 in
Oven Interior Width
24.2 in
Width
29.9 in
Capacity
5.3 cu. ft.
Common Size
30 in
Maximum Height
52.2 in
Minimum Height
46.7 in
Console Language
English
Controls
Display Color White
Display Color
White
Smart Compatibility
Smart Appliance No
Smart Appliance
No
Cooktop Details
Cooktop Control Location Backguard
Cooktop Control Knob Type Plastic
Cooktop Control Type Knobs
Cooktop Surface Material Glass
Griddle Included No
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Cooktop Control Location
Backguard
Cooktop Control Knob Type
Plastic
Cooktop Control Type
Knobs
Cooktop Surface Material
Glass
Griddle Included
No
Heating Element On Indicator Light
Yes
Hot Surface Indicator Light
Yes
Electrical Requirements
Power Cord Included No
Amps 40
Hz 60
Volts 208
Watts 12000
Power Cord Included
No
Amps
40
Hz
60
Volts
208
Watts
12000
Documents
UPC Listing
Model "WFES5730SB" UPC: 883049941011
Model "WFES5730SV" UPC: 883049941035
Model "WFES5730SW" UPC: 883049941004
Model "WFES5730SZ" UPC: 883049941028
Model "WFES5730SB"
UPC: 883049941011
Model "WFES5730SV"
UPC: 883049941035
Model "WFES5730SW"
UPC: 883049941004
Model "WFES5730SZ"
UPC: 883049941028
Install Accessories
4' Electric Range Power Cord 3 Wire 40 Amp Right Angle Plug

Color: Grey
PT220
4' Electric Range Power Cord 3 Wire 40 Amp Right Angle Plug
Color: Grey

4' Electric Range Power Cord 4 Wire 40 Amp Right Angle Plug

Color: Black
PT400
4' Electric Range Power Cord 4 Wire 40 Amp Right Angle Plug
Color: Black

Maintenance Accessories
Range/Cooktop Griddle Non-Stick Cast Aluminum - Black for All 2-Burner Cooking Surfaces Except Induction (1-IN H X 19 1/2-IN W X 11-IN D)

Color: Black
4396096RB
Range/Cooktop Griddle Non-Stick Cast Aluminum - Black for All 2-Burner Cooking Surfaces Except Induction (1-IN H X 19 1/2-IN W X 11-IN D)
Color: Black

Affresh® Cooktop Cleaning Kit

Color: Other
W11042470
Affresh® Cooktop Cleaning Kit
Color: Other

Premium Range Porcelain Broiler Pan and Roasting Rack (Includes Pan and Grid)

Color: Grey
4396923
Premium Range Porcelain Broiler Pan and Roasting Rack (Includes Pan and Grid)
Color: Grey

Power Cord Strain Relief Clamp Connector Fits Any 40A, SRDT and DRT 8-2C + 10-2C Cooking Power Cord

Color: Other
W11457752
Power Cord Strain Relief Clamp Connector Fits Any 40A, SRDT and DRT 8-2C + 10-2C Cooking Power Cord
Color: Other

Reversible Cutting Board (11 X 14)

Color: White
8171456
Reversible Cutting Board (11 X 14)
Color: White

Air Fryer Basket

Color: Stainless Steel
W11692811
Air Fryer Basket
Color: Stainless Steel

Retractable Scraping Tool with Razor Blade - for Cleaning Glass Cooktops

Color: Other
WA906B
Retractable Scraping Tool with Razor Blade - for Cleaning Glass Cooktops
Color: Other

Touch-Up Paint with a Brush - Black 0.6-oz

Color: Black
72032
Touch-Up Paint with a Brush - Black 0.6-oz
Color: Black
