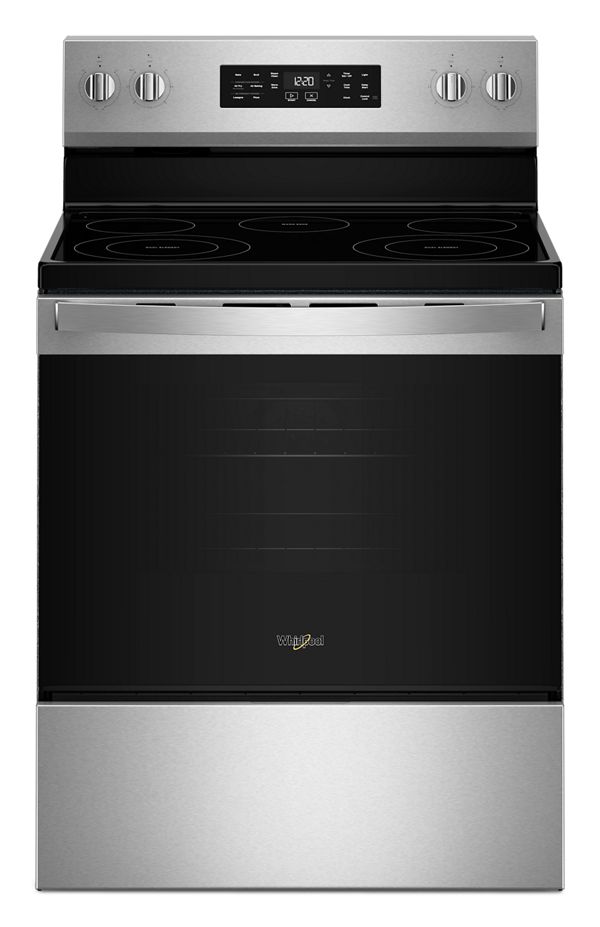

Model: WFES4530SZ
30-inch Electric Range with Air Cooking Technology and Steam Clean
Send Email
Print
Product Description

Experience the difference* of Air Cooking Technology with Air Baking with this 30-inch electric range. Get crispy fast with No Preheat Air Fry or make more feel good meals with a variety of cooking modes. Boil 40% faster with 2 FlexHeat™ Dual Radiant Elements* and prevent soils from building up by regularly using Steam Clean.

*Compared to thermal bake.
**When comparing the 9" element to the standard 6" element on the same unit.

Color: Fingerprint Resistant Stainless Steel

Model: WFES4530SZ
30-inch Electric Range with Air Cooking Technology and Steam Clean
Color: Fingerprint Resistant Stainless Steel

Product Description

Experience the difference* of Air Cooking Technology with Air Baking with this 30-inch electric range. Get crispy fast with No Preheat Air Fry or make more feel good meals with a variety of cooking modes. Boil 40% faster with 2 FlexHeat™ Dual Radiant Elements* and prevent soils from building up by regularly using Steam Clean.

*Compared to thermal bake.
**When comparing the 9" element to the standard 6" element on the same unit.

Features
Air Cooking Technology
Exerience the difference* with Air Cooking Technology, featuring more air flow with No Preheat Air Fry and Air Baking.
*Compared to thermal bakemore
6 Cooking Modes
Make more feel-good meals with a variety of 6 Cooking Modes. Choose from modes that use Air Cooking Technology, like No Preheat Air Fry and Air Baking, or use traditional thermal cooking modes like No Preheat Mode, Bake, Broil, and Keep Warm.more
No Preheat Air Fry
Save time* with No Preheat Air Fy. Get the right heat at the right time with our most advanced Air Fry mode. Get fast, crispy results on chicken wings and mozzarella sticks without the guilt. *Compared to WFE550S0LZmore
2 FlexHeat™ Dual Radiant Elements
Customize your element size for large or small cookware and boil 40% faster* with two FlexHeat™ Dual Radiant Elements, designed with a 6" inner ring and 9" expandable outer ring. *When comparing the 9" element to the standard 6" element on the same unit.more
Steam Clean
Use the Steam Clean cycle regluarly to help prevent large soils from building up. To quickly and easily loosen light messes inside the oven without harsh chemicals or cleaners—just add water, run the cycle, and wipe away.more
Air Baking
Go from gooey to golden and get even results when baking on multiple racks with Air Baking. Our high-speed fan optimizes air flow and drives consitent heat throughout the oven. Get golden results on breads, pastries and more.more
No Preheat Mode
Take preheating off your plate and cook up frozen faves with No Preheat Mode. Simply press a few buttons and let your oven calculate the proper cooking time.more
Bake
Spend less time monitoring with a built-in temperature sensor to help Bake evenly. This sensor manages oven temperature for delicious results every time.more
Broil
Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.more
Warm Zone
Use the designated Warm Zone to keep your food warm on the cooktop as you prep the rest of your meal.more
Cooktop Flexibility
Easily cook multiple dishes at once with a Flexible Cooktop that offers a range of element sizes and power levels.more
Large Capacity Oven
Cook for a crowd and fit large dishes, like a full-sized turkey, into the spacious large capacity 5.3 cu. ft. oven.more
Storage Drawer
Easily store kitchen items from baking sheets to cooking pans in the storage drawer to free up space elsewhere in your kitchen.more
Fingerprint Resistant Stainless Steel
Available in Fingerprint Resistant Stainless Steel that's easy to clean and resists fingerprints and smudges.more
ENERGY STAR® Certified
ENERGY STAR® Certified models exceed government standards to help save money on your utility bills.more
Sabbath Mode
Sabbath mode keeps the oven in Bake mode until it can be shut off, allowing you to cook and warm food during the Sabbath. All other oven settings, including temperature displays, sounds, changes in light status and cleaning cycles will be disabled.more
Specifications
Certifications
ADA Compliant No
CUL No
Star K Certified Star K Certified
UL Yes
Prop 65 CA
Energy Star® Qualified Yes
ADA Compliant
No
CUL
No
Star K Certified
Star K Certified
UL
Yes
Prop 65
CA
Energy Star® Qualified
Yes
Oven Cavity Details
Number of Oven Racks 2
Convection Functions Air Baking , Bake , Keep Warm , No Preheat , No Preheat Air Fry , No Preheat Frozen Bake Lasagna , No Preheat Frozen Bake Pizza , Warm Zone
Oven Rack Type 2 Standard
Broiler Location Top Center
Oven Cleaning Type Steam Clean
Door Removable Yes
Number of Oven Lights 1
Convection Element Type Fan
Oven Light Type Halogen
Interior Color Grey
Number of Rack Guides 5
Hidden Bake Element Hidden
Oven Cooking System Convection
Broiler Element Power 3,400 W
Bake Element Power 2,400 W
Oven Rack Guide Type Embossed
Automatic Convection Conversion Temperature Adjust No
Oven Light Switch Location Oven Control
Oven Rack Front Material Metal
Temperature Probe No
Temperature Sensor Yes
Number of Oven Racks
2
Convection Functions
Air Baking , Bake , Keep Warm , No Preheat , No Preheat Air Fry , No Preheat Frozen Bake Lasagna , No Preheat Frozen Bake Pizza , Warm Zone
Oven Rack Type
2 Standard
Broiler Location
Top Center
Oven Cleaning Type
Steam Clean
Door Removable
Yes
Number of Oven Lights
1
Convection Element Type
Fan
Oven Light Type
Halogen
Interior Color
Grey
Number of Rack Guides
5
Hidden Bake Element
Hidden
Oven Cooking System
Convection
Broiler Element Power
3,400 W
Bake Element Power
2,400 W
Oven Rack Guide Type
Embossed
Automatic Convection Conversion Temperature Adjust
No
Oven Light Switch Location
Oven Control
Oven Rack Front Material
Metal
Temperature Probe
No
Temperature Sensor
Yes
Element/Burner Details
Center Rear Element-Burner Size 6in.
Center Rear Element-Burner Type Warming
Center Rear Element-Burner Power 100W
Cooktop Element Style Radiant
Left Front Element-Burner Power 3000W
Left Front Element-Burner Size 9in./6in.
Left Front Element-Burner Type Dual
Left Rear Element-Burner Power 1200W
Left Rear Element-Burner Size 6in.
Left Rear Element-Burner Type Single
Number of Cooking Element-Burners 5
Right Front Element-Burner Power 3000W
Right Front Element-Burner Size 9in./6in.
Right Rear Element-Burner Size 6in.
Right Front Element-Burner Type Dual
Right Rear Element-Burner Power 1200W
Right Rear Element-Burner Type Single
Center Rear Element-Burner Size
6in.
Center Rear Element-Burner Type
Warming
Center Rear Element-Burner Power
100W
Cooktop Element Style
Radiant
Left Front Element-Burner Power
3000W
Left Front Element-Burner Size
9in./6in.
Left Front Element-Burner Type
Dual
Left Rear Element-Burner Power
1200W
Left Rear Element-Burner Size
6in.
Left Rear Element-Burner Type
Single
Number of Cooking Element-Burners
5
Right Front Element-Burner Power
3000W
Right Front Element-Burner Size
9in./6in.
Right Rear Element-Burner Size
6in.
Right Front Element-Burner Type
Dual
Right Rear Element-Burner Power
1200W
Right Rear Element-Burner Type
Single
Details
Cooktop Configuration All Burners
Delay Clean No
Fuel Type Electric
Installation Configuration Freestanding
Oven Automatic Shut-Off Yes
Oven Configuration Single Oven
Power On Indicator Light Yes
Power Outage Compatible Yes
Range Configuration Freestanding
Range Type Freestanding
Air Fry Yes
Oven Selections Audible Signal , Bake , Broil , Clock , Control Lock , Convect Modes , Cook Time , Delay Start , Language Conversion , Light , No Preheat - Frozen , Sabbath Mode , Start/Cancel , Steam Clean , Temp/Time Selection , Timer Set/Off
Literature Language English , French , Spanish
Export Packaging No
Fingerprint Resistant Yes
Cooktop Configuration
All Burners
Delay Clean
No
Fuel Type
Electric
Installation Configuration
Freestanding
Oven Automatic Shut-Off
Yes
Oven Configuration
Single Oven
Power On Indicator Light
Yes
Power Outage Compatible
Yes
Range Configuration
Freestanding
Range Type
Freestanding
Air Fry
Yes
Oven Selections
Audible Signal , Bake , Broil , Clock , Control Lock , Convect Modes , Cook Time , Delay Start , Language Conversion , Light , No Preheat - Frozen , Sabbath Mode , Start/Cancel , Steam Clean , Temp/Time Selection , Timer Set/Off
Literature Language
English , French , Spanish
Export Packaging
No
Fingerprint Resistant
Yes
Exterior Details
Door Type Glass
Handle Material Metal
Handle Color Print Resist Stainless Steel
Handle Type Reach Through Handle
Knob Color Print Resist Stainless Steel
Knob Type Plastic
Oven Control Knob Type N/A
Oven Control Location Backguard
Oven Control Type Tap Touch
Oven Window Size Extra Large
Door Lock No
Door Type
Glass
Handle Material
Metal
Handle Color
Print Resist Stainless Steel
Handle Type
Reach Through Handle
Knob Color
Print Resist Stainless Steel
Knob Type
Plastic
Oven Control Knob Type
N/A
Oven Control Location
Backguard
Oven Control Type
Tap Touch
Oven Window Size
Extra Large
Door Lock
No
Smart Compatibility
Connectivity No
Smart Appliance No
Connectivity
No
Smart Appliance
No
Dimensions
Adjustable Height Yes
Cutout Depth 24 in
Cutout Height 36 in
Cutout Width 30 in
Depth 27.75 in
Depth Closed Excluding Handles 25.313 in
Depth Closed Including Handles 28 in
Depth Excluding Doors 24.5 in
Depth With Door Open 90 Degree 46.688 in
Gross Weight 160 lbs
Height 47.875 in
Net Weight 144 lbs
Oven Interior Height 18.125 in
Oven Interior Depth 18.5 in
Oven Interior Width 24.5 in
Width 29.875 in
Capacity 5.3 cu. ft.
Common Size 30 in
Maximum Height 47.875 in
Minimum Height 46.875 in
Console Language English
Adjustable Height
Yes
Cutout Depth
24 in
Cutout Height
36 in
Cutout Width
30 in
Depth
27.75 in
Depth Closed Excluding Handles
25.313 in
Depth Closed Including Handles
28 in
Depth Excluding Doors
24.5 in
Depth With Door Open 90 Degree
46.688 in
Gross Weight
160 lbs
Height
47.875 in
Net Weight
144 lbs
Oven Interior Height
18.125 in
Oven Interior Depth
18.5 in
Oven Interior Width
24.5 in
Width
29.875 in
Capacity
5.3 cu. ft.
Common Size
30 in
Maximum Height
47.875 in
Minimum Height
46.875 in
Console Language
English
Controls
Display Color White
Display Color
White
Features
Range Features Air Fry , Fan Convection , FlexHeat™ Dual Element , Sabbath Mode/Star-K Certification , Whirlpool Handle
Range Features
Air Fry , Fan Convection , FlexHeat™ Dual Element , Sabbath Mode/Star-K Certification , Whirlpool Handle
Cooktop Details
Cooktop Control Location Backguard
Cooktop Control Knob Type Plastic
Cooktop Control Type Knobs
Cooktop Surface Material Glass
Griddle Included No
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Cooktop Control Location
Backguard
Cooktop Control Knob Type
Plastic
Cooktop Control Type
Knobs
Cooktop Surface Material
Glass
Griddle Included
No
Heating Element On Indicator Light
Yes
Hot Surface Indicator Light
Yes
Electrical Requirements
Power Cord Included No
Amps 40
Hz 60
Volts 208
Watts 7900
Power Cord Included
No
Amps
40
Hz
60
Volts
208
Watts
7900
Documents
UPC Listing
Model "WFES4530SB" UPC: 883049936659
Model "WFES4530SS" UPC: 883049936628
Model "WFES4530SV" UPC: 883049936642
Model "WFES4530SW" UPC: 883049936666
Model "WFES4530SZ" UPC: 883049936635
Model "WFES4530SB"
UPC: 883049936659
Model "WFES4530SS"
UPC: 883049936628
Model "WFES4530SV"
UPC: 883049936642
Model "WFES4530SW"
UPC: 883049936666
Model "WFES4530SZ"
UPC: 883049936635
