Model: UXT4130ADB

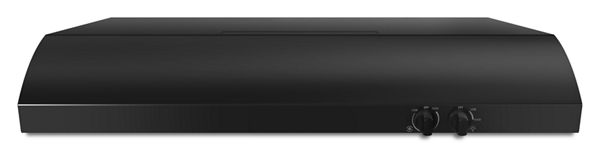

30" Range Hood with the FIT System
Send Email
Print

Product Description

Installing this stove hood is quick and easy. The FIT system helps reduce measuring, cutting and trim for a smooth fit. When cooking introduces steam, grease, smoke or odors into the surrounding air, the powerful 2-speed hood vent kitchen fan takes care of

White Stainless Steel Black
Color: Black

Model: UXT4130ADB
30" Range Hood with the FIT System
Color: Black

Product Description

Installing this stove hood is quick and easy. The FIT system helps reduce measuring, cutting and trim for a smooth fit. When cooking introduces steam, grease, smoke or odors into the surrounding air, the powerful 2-speed hood vent kitchen fan takes care of

Features
FIT System
The FIT system eliminates measuring, cutting and trim for a perfect fit every time.more

FIT System

The FIT system eliminates measuring, cutting and trim for a perfect fit every time.

x
56 dBA (2.6 sones) at Low Speed
Keep noise down in the kitchen with the quiet operation of 66 dBA (5.3 sones) at the hood's highest speed with a recirculation option.more

56 dBA (2.6 sones) at Low Speed

Keep noise down in the kitchen with the quiet operation of 66 dBA (5.3 sones) at the hood's highest speed with a recirculation option.

x
Hidden Vent
2-speed, 190 CFM Motor Class
Two fan speeds provide the right amount of ventilation for every meal you prepare.more

2-speed, 190 CFM Motor Class

Two fan speeds provide the right amount of ventilation for every meal you prepare.

x
Incandescent Lighting
Incandescent lighting makes it easy to see what you’re cooking with bulbs that are inexpensive to replace.more

Incandescent Lighting

Incandescent lighting makes it easy to see what you’re cooking with bulbs that are inexpensive to replace.

x
Recirculation (Non-Vented/Duct-Free)
By not having to connect to outside air, this hood can be installed almost anywhere, including a condo. Recirculation happens through filters to help keep the air fresh.more

Recirculation (Non-Vented/Duct-Free)

By not having to connect to outside air, this hood can be installed almost anywhere, including a condo. Recirculation happens through filters to help keep the air fresh.

x
ADA compliant
This hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.more

ADA compliant

This hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.

x
Specifications
Certifications
ADA Compliant Yes
Star K Certified Yes
Prop 65 Prop 65 warning CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADA Compliant
Yes
Star K Certified
Yes
Prop 65
Prop 65 warning CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Details
Hood Type Under-the-Cabinet
Material Painted Steel
Blower Type Axial
Hood Type
Under-the-Cabinet
Material
Painted Steel
Blower Type
Axial
Ventilation Details
BTU Threshold 40 K
Blower Type Axial
CFM Motor Class 250
Duct Direction Vertical or Horizontal
Duct Outlet Size 3.25 W x 10 H in
Duct Type Rectangular
Task Light Type Incandescent
Task Lighting Yes
Number of Task Light Settings 2
BTU Threshold
40 K
Blower Type
Axial
CFM Motor Class
250
Duct Direction
Vertical or Horizontal
Duct Outlet Size
3.25 W x 10 H in
Duct Type
Rectangular
Task Light Type
Incandescent
Task Lighting
Yes
Number of Task Light Settings
2
Dimensions
Depth 18-5/8 in
Gross Weight 17 lbs
Height 4-15/16 in
Net Weight 14 lbs
Width 29-15/16 in
Depth
18-5/8 in
Gross Weight
17 lbs
Height
4-15/16 in
Net Weight
14 lbs
Width
29-15/16 in
Controls
Control Type Push Button
Number of Vent Speeds 2
Control Type
Push Button
Number of Vent Speeds
2
Ventilation System
BTU Threshold 40 K
Blower Type Axial
Task Light Type Incandescent
BTU Threshold
40 K
Blower Type
Axial
Task Light Type
Incandescent
Documents
UPC Listing
Model "UXT4130ADB" UPC: 883049326559
Model "UXT4130ADS" UPC: 883049326573
Model "UXT4130ADW" UPC: 883049326566
Model "UXT4130ADB"
UPC: 883049326559
Model "UXT4130ADS"
UPC: 883049326573
Model "UXT4130ADW"
UPC: 883049326566
Optional Accessories
Range Grease Filter Vent Hood

Color: Other
W10395127
Range Grease Filter Vent Hood
Color: Other

Range Hood Power Cord

Color: Other
W10613691
Range Hood Power Cord
Color: Other

Range Rectangular Vent Damper Kit

Color: Other
W10398259
Range Rectangular Vent Damper Kit
Color: Other

Range Hood Charcoal Filters

Color: Other
W10355450
Range Hood Charcoal Filters
Color: Other
